Plcc44 To Dip40 Programmer Adapter Socket In Pakistan

Product Configuration

Insert Adapter: Plug the DIP40 male end firmly into the programmer’s ZIF socket (ensure pin 1 alignment).

Place Chip: Open the ZIF lever (if available) on the adapter, align the PLCC44 chip’s notch with the socket’s notch (pin 1 reference), and close the lever to secure.
Programmer Setup: In the programmer software, select the target chip model (e.g., SST29EE010).
Operations: Perform standard read/write/erase functions as with a DIP chip.
Safety: Power off the programmer when inserting/removing the adapter or chip.

Function: Converts PLCC44 (Plastic Leaded Chip Carrier) IC package to a standard DIP40 (Dual In-line Package) socket.
Compatibility: Allows programming of PLCC44 chips (e.g., EPROM, Flash, MCUs) using programmers designed for DIP packages.
Design: Features a ZIF (Zero Insertion Force) socket or precision pin alignment for safe IC insertion/removal.
Usage: Essential for legacy chip programming, BIOS recovery, and embedded systems development.
Build: High-quality materials ensure durability and reliable electrical contact.

Description
Review

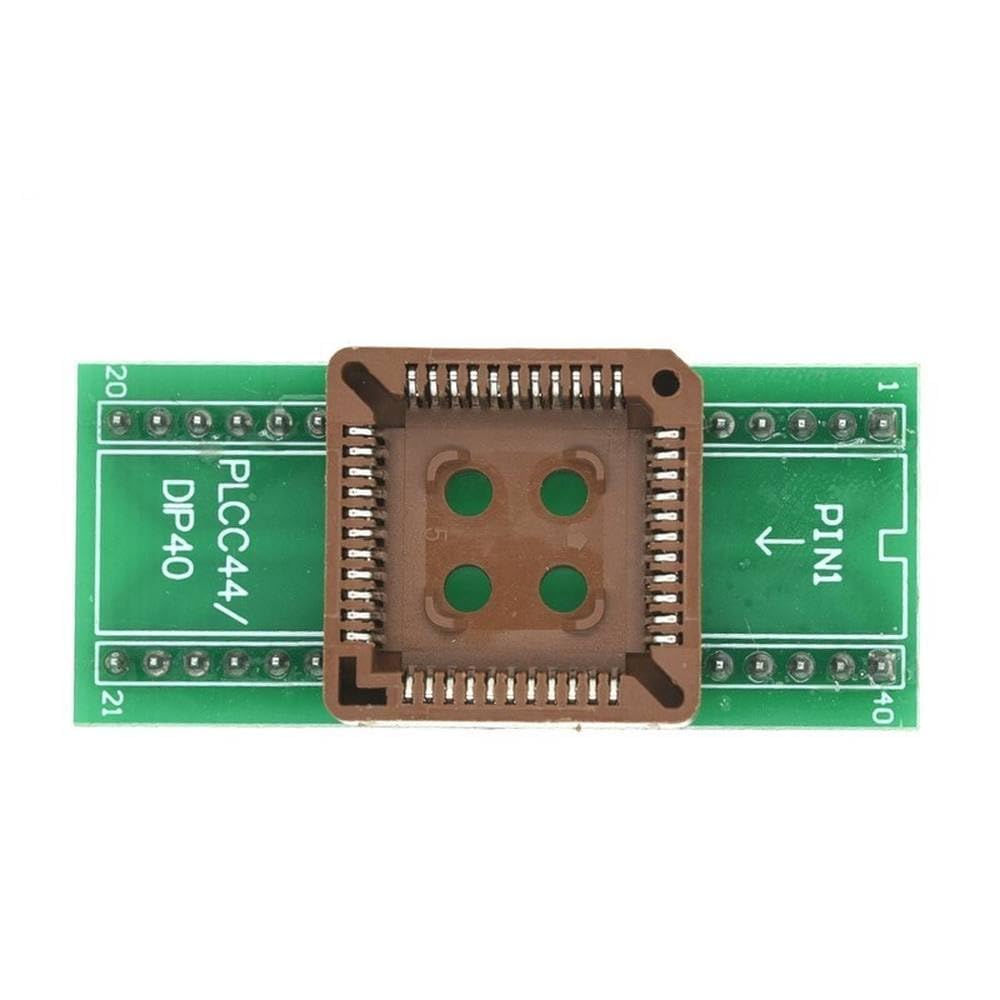

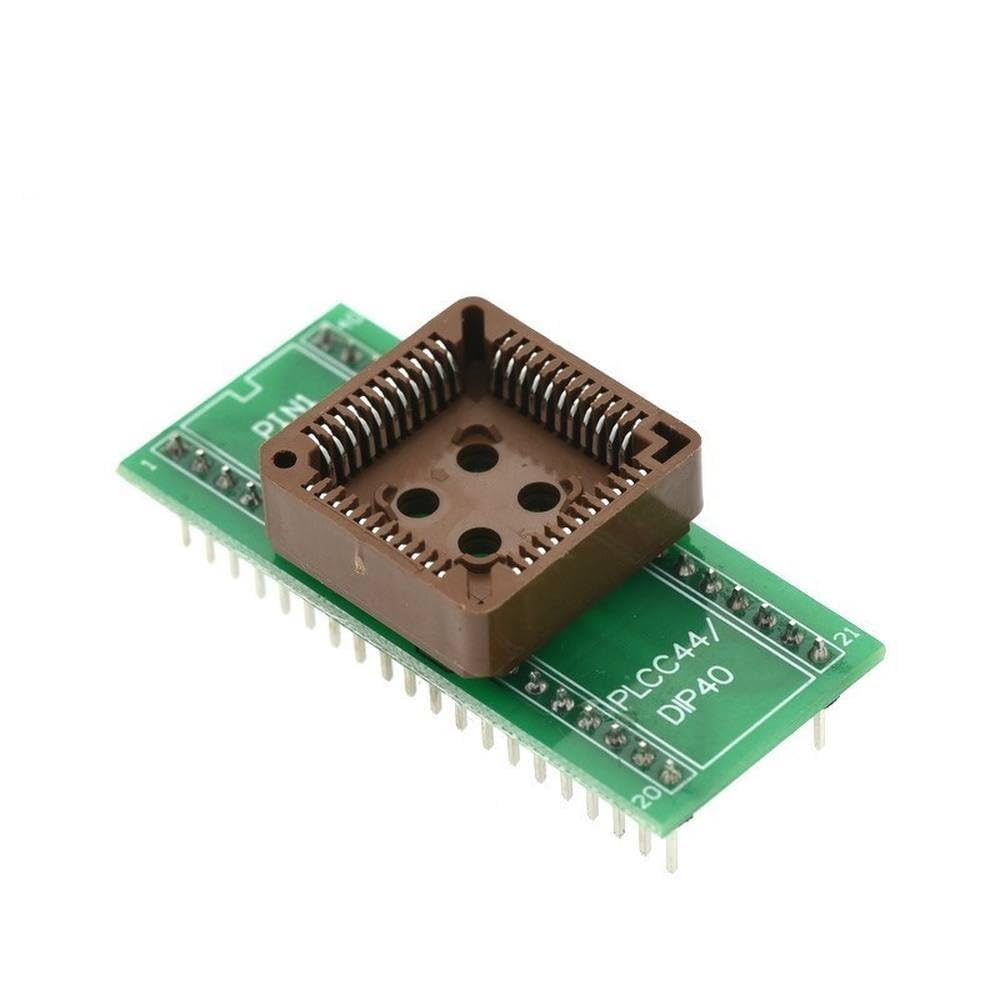

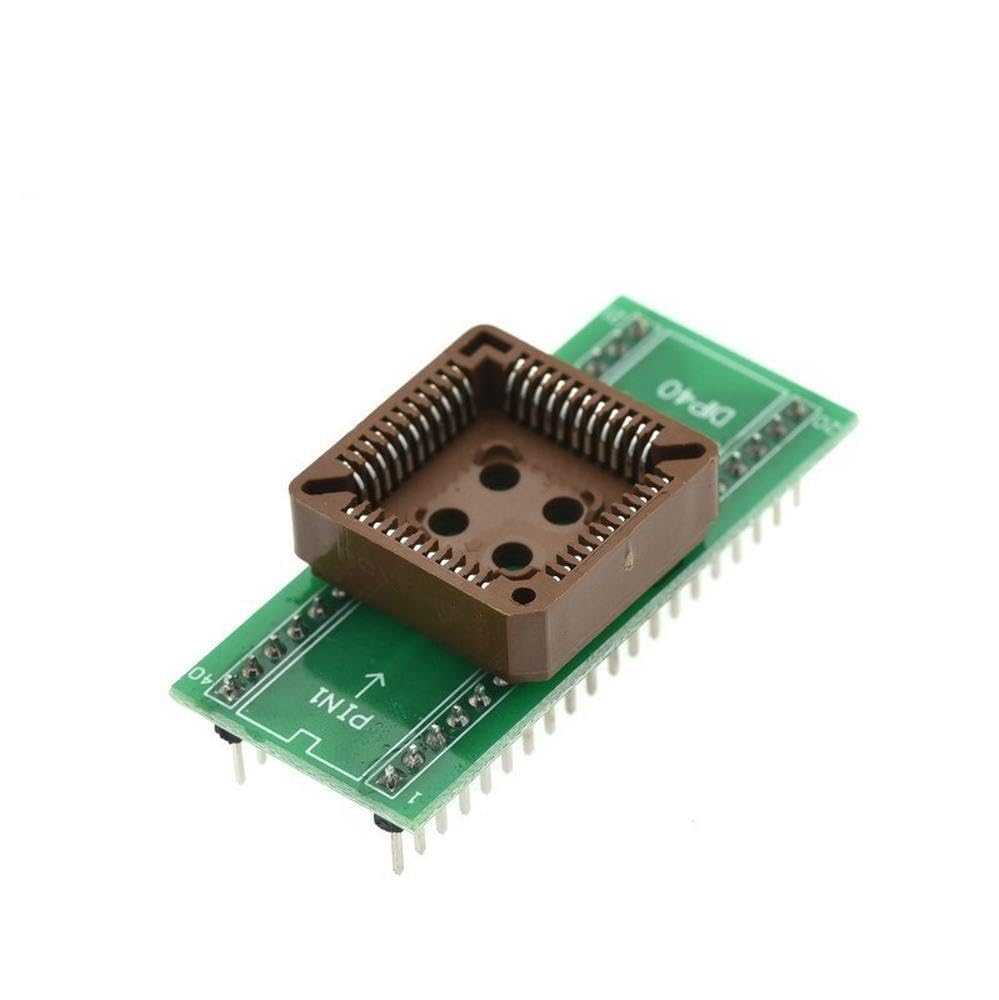

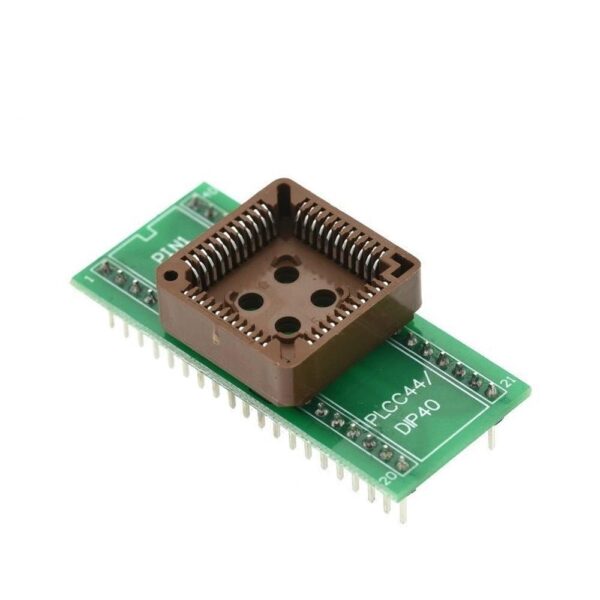

The PLCC44 to DIP40 Programmer Adapter Socket is a critical interface tool for electronics engineers and technicians working with legacy integrated circuits. Many older microcontrollers, EPROMs, and Flash memory chips (e.g., AMD AM29F010, SST29EE010) use the PLCC44 surface-mount package, which has J-leads spaced around its perimeter. However, most universal programmers support DIP packages through their primary sockets. This adapter bridges that gap by providing a physical and electrical conversion from the PLCC44 footprint to a standard 40-pin DIP layout.

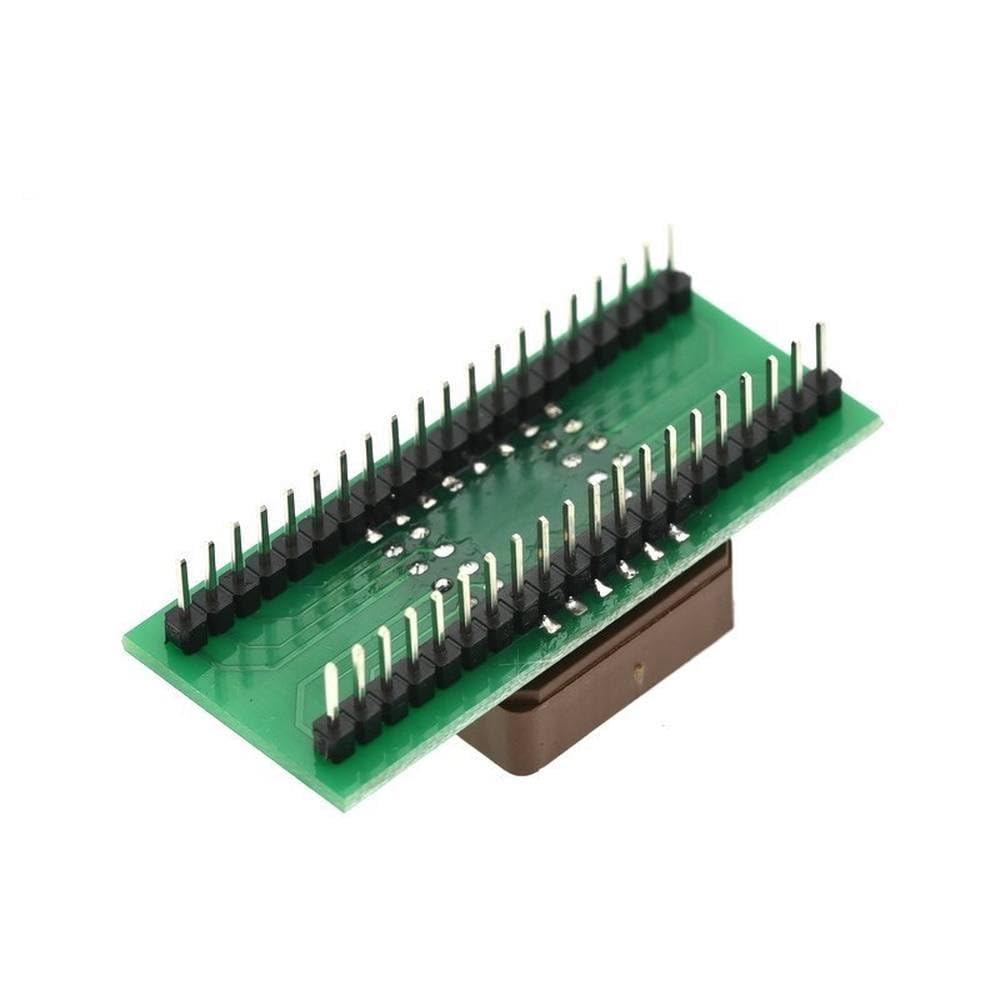

The adapter typically includes a precision-machined ZIF socket or a carefully designed clamp to hold the PLCC44 chip securely without bending its delicate leads. The internal PCB routes each signal from the PLCC44’s J-leads to the corresponding pins of the DIP40 interface, ensuring full functionality during programming operations. This tool is indispensable for reviving old hardware, recovering firmware from obsolete systems, or developing embedded solutions where PLCC44 chips are still in use. Its robust construction guarantees repeated use without loss of connectivity, making it a cost-effective solution for avoiding the need for specialized PLCC-specific programmers.

Key Features:

Precision Conversion: Accurately maps PLCC44 pins to DIP40 pins.
ZIF Socket: Safely holds chips without lead damage during insertion/removal.
Wide Compatibility: Works with PLCC44-based EPROMs, Flash memory, and MCUs.
Durable Design: High-quality PCB and contacts ensure longevity.
Time-Saving: Eliminates the need for soldering or manual wiring.
